2018CE/ISO top quality Wood pelletizing machine/wood pellet machinery for making wood pellets

FOB Reference Price:Get Latest Price
US $16,000-21,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
weifeng
Model Number:
MZLH420
Voltage:
380V/50HZ
Power(W):
90kw
Dimension(L*W*H):
3962*1695*2937mm
Weight:
30T
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Capacity:
2-8T/H
Pellet mill:
MZLH420, MZLH508
Material:
wood pellet,rice husk,straw,sawdust......
Pellet size:
6/8/10mm
Certificate:
CE,ISO
Packaging & Delivery
Packaging Details
wooden box.
Port
Shanghai
Lead Time :
within 20-40days.

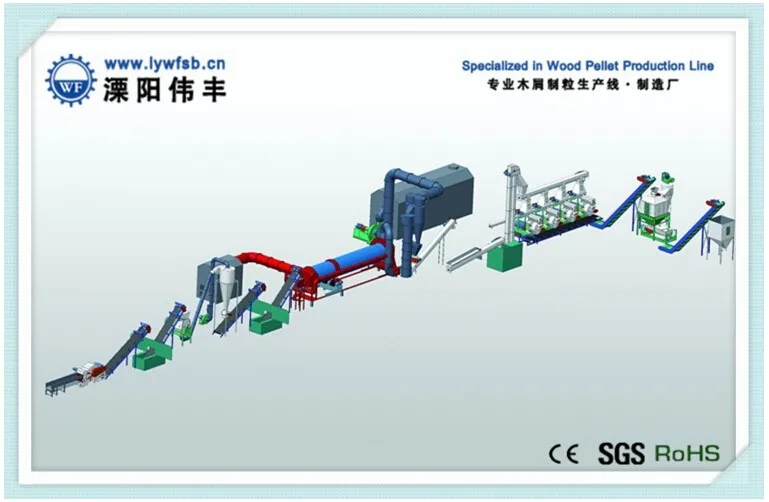

Our factory Liyang Weifeng Equipment Co., Ltd. is a professional manufacturer specialized in designing and building 1-15TPH turn key biomass fuel pellet production line.



We export our machines to all over the world and had built all kinds of biomass fuel pellet production lines in India, Vietnam, Russia, Thailand, Malaysia, Ukraine, Greece(CE),Italy(CE), Romania, Spain and so on.

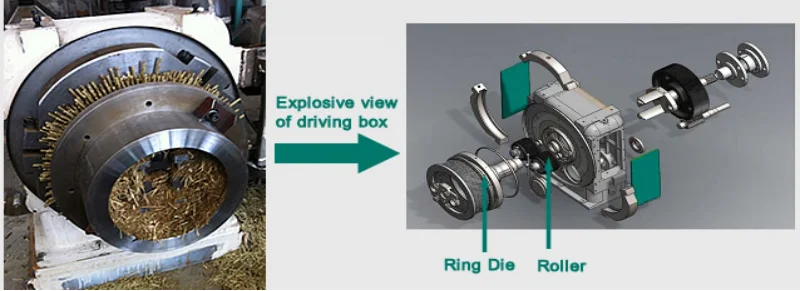

MZLH Wood pellet mill

1.Main Performance Features

1. Highly efficient one step gear transmission driving ensures maximum utilization ratio of energy. The capacity will enhance 20% than belt driving.

2. High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.

3. New style S-shape spring coupling assembly with hub-taper lock bores, bushing-taper locks, so can be adopted to obtain big offset travel and further smooth running.

4. Using high quality bearing and oil seal in the main drive, resulting in long service life and low equipment noise.



2. Technical Parameters

Model

Capacity(t/h)

Power(KW)

Ring Die Diamater(mm)

Pellet Size(mm)

Weight(T)

Main

Feeder

MZLH250

0.1-0.2

15

0.55

Φ250

Φ6,Φ8,Φ10,Φ12

1

MZLH320

0.3-0.5

37

0.55

Φ320

Φ6,Φ8,Φ10,Φ12

2.5

MZLH350

0.5-0.8

55

0.75

Φ350

Φ6,Φ8,Φ10,Φ12

3

MZLH420

0.8-1.2

90/110

1.5

Φ420

Φ6,Φ8,Φ10,Φ12

3.5

MZLH508

1.5-2

132/160

1.5

Φ508

Φ6,Φ8,Φ10,Φ12

4.5











FACTORY EQUIPMENT:

In order to quote the best price, please let us know the info:

1, What is your raw material?

2,What is the raw material size?

3,What is the raw material moisture content?

4,What is the capacity do you need?

5, Do you need automatic system or manual packing?



Sincere hope to do long term business relationship with you!

Welcome to our manufactory to visit our production line.
