CE cattle/chicken pelletizing machine line/animal feed processing machinery line(whatsapp:008615961276162)

FOB Reference Price:Get Latest Price
US $2,000-25,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SZLH
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
LYWF
Type:
Feed Pellet Machine
Voltage:
380V
Power(W):
300KW
Dimension(L*W*H):
3000*1260*1860mm
Weight:
30000 kg
Certification:
CE
Warranty:
1-3YEARS, 1-3years
After-sales Service Provided:
Overseas service center available
Capacity:
0.5-30t/h
Certificate:
CE
After sale service:
7X24hours
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case or pallet for your choice.
Port
shanghai



SZLH feed pellet mill/feed pellet making machine/feed machinery



Advantage:

1.This feed pellet machine is equipped with screw feeder controlled by FC inverter with permanent magnet to removing iron impurities.
2. Stainless steel conditioner makes even retention and sufficient cooking effect.
3. Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to feed pellet machine driven by belts.

4. High quality bearings(NSK),motor( Siemens or China top brand-Wannan ) is adopted to makes operation smoothly.

5. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.

6. The ring die& roller assemblies are quickly assembled and disassembled.

7. Applicable for all kinds of high grade animal/livestock/aqua feed. Sinlge, double or three layers of conditioner is optional.

8. Speed-adjust feeding, adopted by this feed pellet machine, can control the feeding capacity correctly to fit for different and meet the production requirement of pellets with different diameters.



Technical Parameters:

Model

Main Power
(kw)

Capacity
(t/h)

Feeder Power
(kw)

Conditioner Power
(kw)

Die Diameter
(mm)

Feed Pellet Size
(mm)

SZLH250

15

0.5-1

0.55

2.2

250

2-18

SZLH320

37

2-5

0.75

2.2

320

2-18

SZLH350

55

2-7

0.75

3

350

2-18

SZLH400

75/90

3-12

1.1

4

400

2-18

SZLH420

90/110

3-14

1.5

5.5

420

2-18

SZLH508

110/132/160

4-20

1.5

7.5

508

2-18

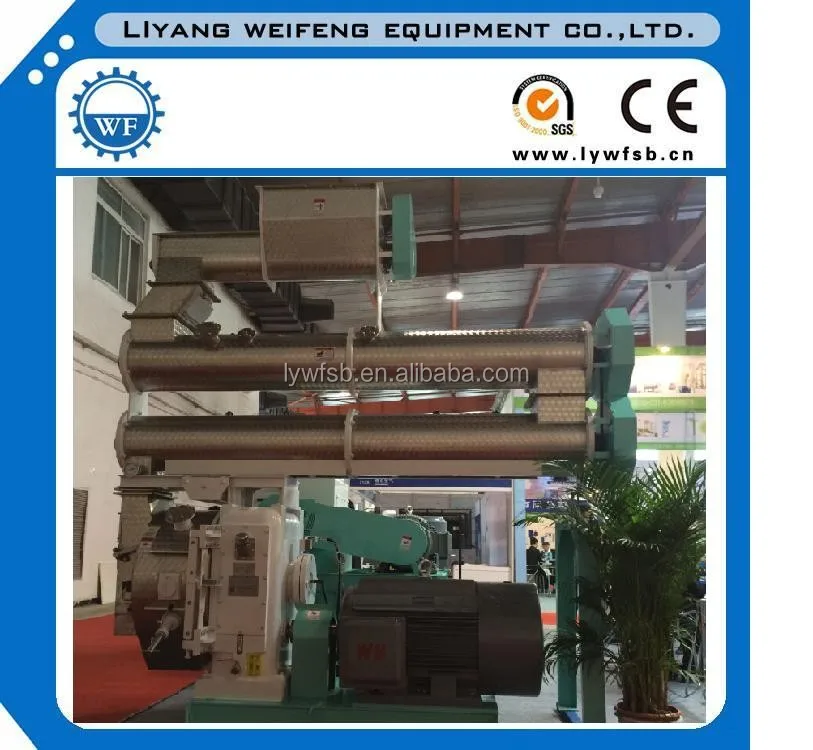

Animal feed pellet mill:

pellet mill (3).jpgfeed pellet mill.jpgpellet mill.jpg

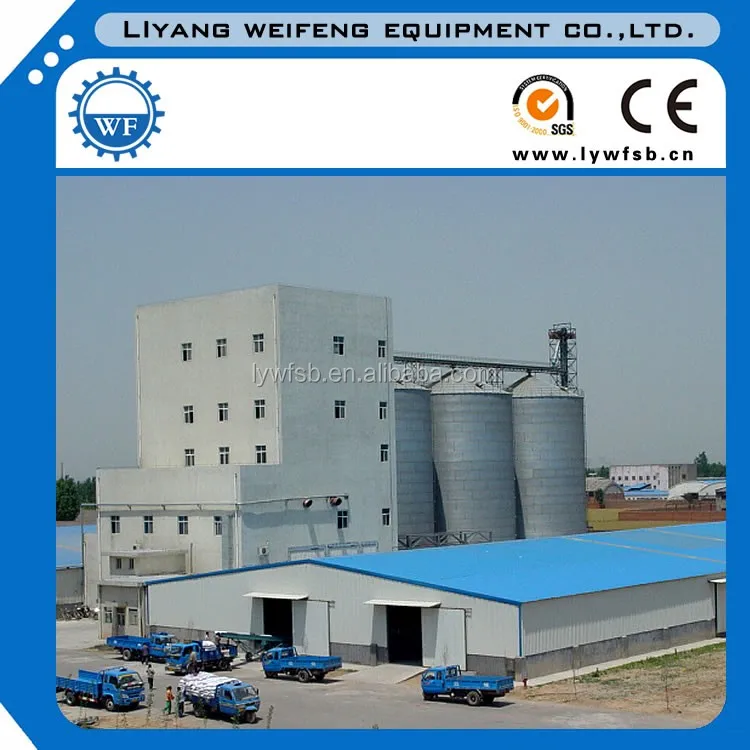

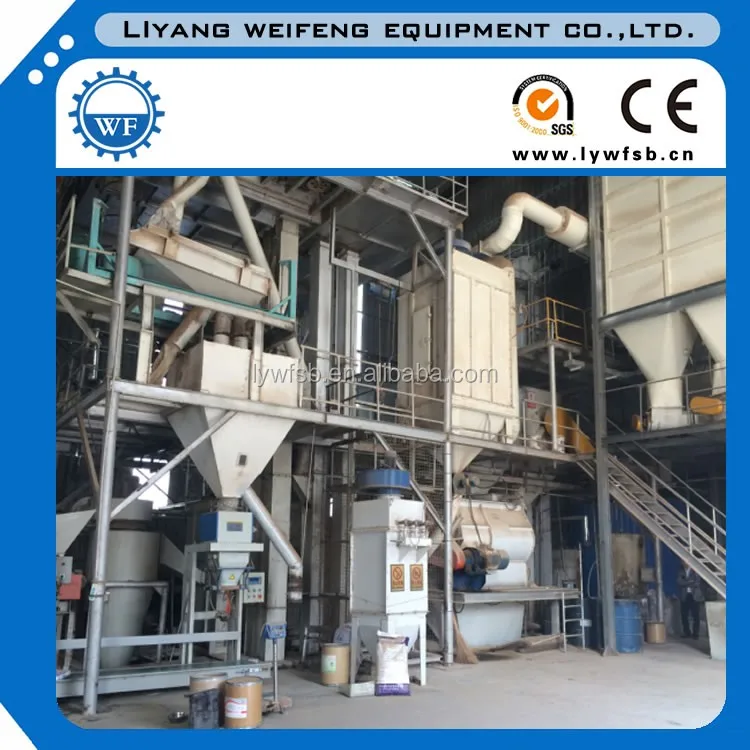

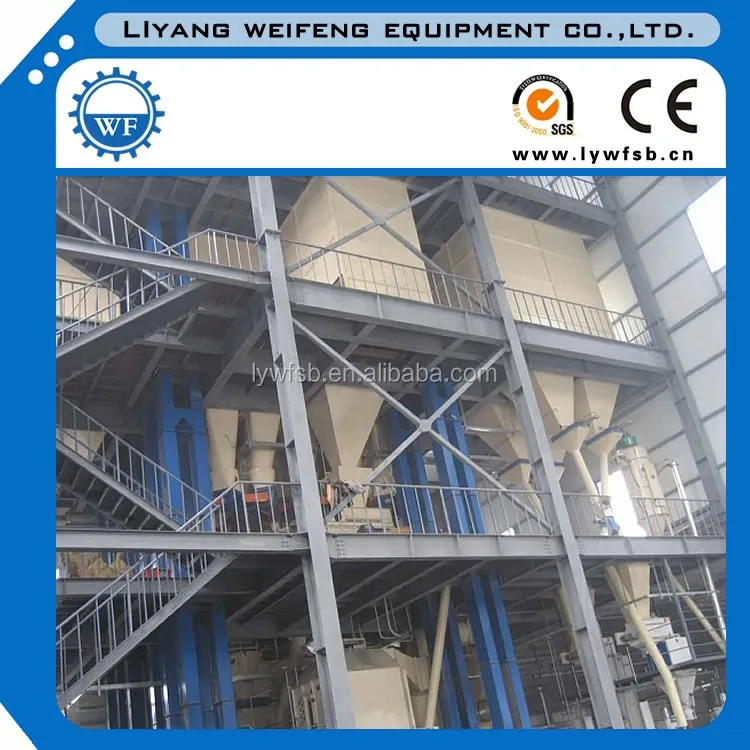

Complete feed pellet line:

9.jpgline (1).jpgline1.jpgline2.jpg7.jpg





Welcome to China to visit our factory and sample line!
