Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: LYWF
  • Model Number: SZLH
  • Type: Feed Pellet Machine
  • Voltage: 220V/380V/400V/415V
  • Power(W): 300kw
  • Dimension(L*W*H): 3000*2000*1500mm
  • Weight: 3000 kg
  • Certification: ISO CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Turn Key 1-10t/h Poultry Livestock Feed Production Line
  • Capacity: 1-30t/h
  • Conditioner: one/two/three conditioners
  • After-sales service: 7*24hours
  • Main Motor: Siemens/WN
  • Installation: Turn key project
  • Steel structure: can provide
  • Dosing mathod: Auto or manual
  • Feed pellet diameter: 1-20mm
  • Lifetime: over 10 years

Packaging & Delivery

Packaging Details 1.standard 20GP or 40GP container for machines and equipments
2.Steel case/wooden case for spare parts
Turn Key 1-30t/h Poultry Livestock Feed Production Line
Delivery Time Shipped in 30 days after payment

Turn Key 1-30t/h Poultry Livestock Feed Production Line

Turn Key 1-30t/h Poultry Livestock Feed Production Line



Product Description



Our factory Liyang Weifeng Equipment Co., Ltd. is a professional manufacturer

specialized in developing, producing and maketing topcalss animal feed pellet mill and

all 1-30t/h feed pellet production lines. Our production line can make feed for cattle, chicken, goat, duck, horse, fish, shrimp etc..

The main pellet mill are as following: SZLH250,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508

The capacity can be 1-3t/h,5-8t/h,8-12t/h,20t/h,30t/h

The pellet diameter is from Ø2mm to Ø16mm

Production Process

Poultry feed production line flow diagram:

Material receiving----precleaning process----grinding process----batching&mixing process----pelleting process----cooling&sifting process----packing process.



Machines:



SFSP Series Hammer Mill (Click picture for more details):







SZLH Series Feed Mill (Click picture for more details):



No.

Item

Technical parameters and performance index

 SZLH250

 SZLH320

SZLH350

SZLH400

SZLH420

SZLH508

1

Capacity (t)

 0.5-1.5

 1-5

2-7

3-12

3-14

4-20

2

Power

(Kw)

Main machine

 15/22

 37

55

75/90

90/110

110/132/160

Screw feeder

 0.55

 0.75

0.75

1.5

1.5

1.5

Conditioner

 1.5

 3

3

5.5

5.5

11

3

Inner diameter of die (mm)

φ250mm

φ350mm

φ350mm

φ400mm

φ420mm

φ508mm

4

Pellet size (mm)

φ2-φ18mm

φ2-φ18mm

φ2-φ18mm

φ2-φ18mm

φ2-φ18mm

φ2-φ18mm

5

No. of press roll

 2

 2

2

2

2

2

6

Outer diameter of press roll

 /

 /

φ140mm

φ190mm

φ190mm

/

7

Shaping rate(%)

≥95%

≥95%

≥95%

≥95%

≥95%

≥95%

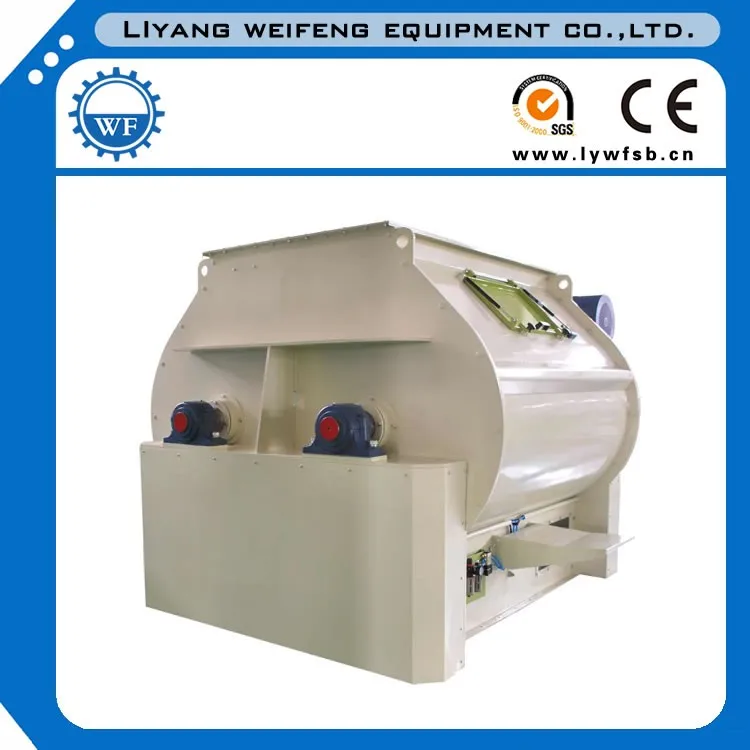

 SSHJ Series Mixer  (Click picture for more details):





 Ring Die and Other Spare Parts (Click picture for more details):



FAQ

1.What kind of feed pellet you want to make?

Poultry feed or aqua feed?

2.How long will you produce everyday?

8-10 hours?

3.What is the feed pellet diameter you want?

We can make 1.0-20mm.

4.You want auto dosing or manual dosing?

5.What is the voltage you need?



Welcome to visit our factory in China!
