Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: LYWF
  • Model Number: SZLH series
  • Type: Feed Pellet Machine
  • Voltage: 380V, 3 Phase,380V,50HZ
  • Power(W): 110KW
  • Dimension(L*W*H): 5500*2200*2100MM
  • Weight: 3500 kg
  • Certification: CE ISO SGS
  • Warranty: 2 Years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Material: All stainless steel
  • Conditioner: Two or three
  • Main drive: gear drive
  • Wear parts: Ring die and press roll
  • Pellet Size: 1mm-12mm

Packaging & Delivery

Packaging Details Wooden case and pallet for your choice.

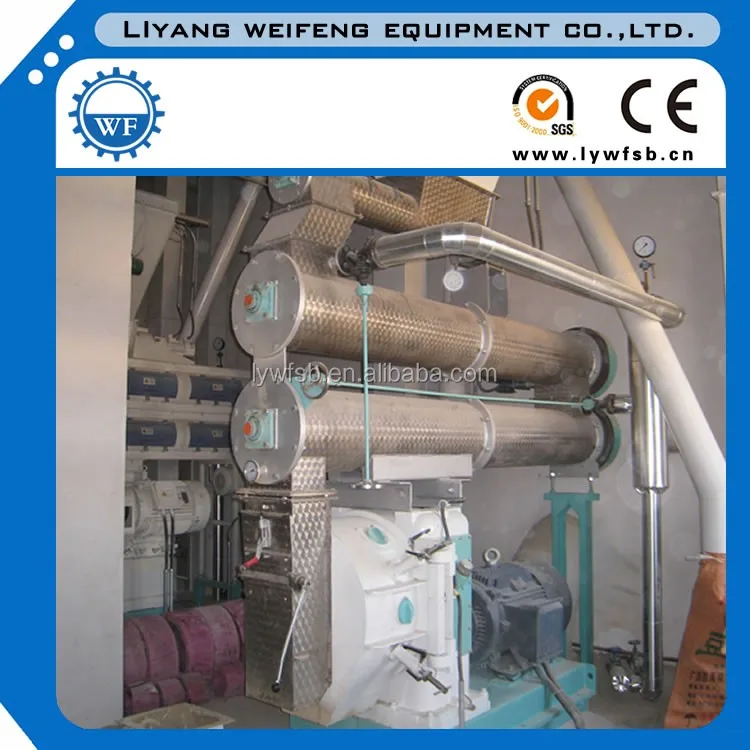

Animal Feed Pellet Mill



1)Ring die livestock feed pellet mill

2) with two layer conditioner

3)Can add steam to increase the capacity and the pellet quality

4)Automatic oiled to machine for running good

5)Ring die pellet mill is far superior to flat die technology
6)Gear drive is much better than belt drive,
7)Includes one ring die and a set of rolls

8)A large selection of stainless steel or alloy steel dies for this machine that can be purchased separately



1 Driven with heavy- duty gearbox construction can produce continuously in most adverse condition.

2 The imported key elements are of high performance with long life and low maintenance cost.

3 The key parts are made of alloy steel to be very strong and malleable. Die is made of stainless steel.

4 Pellet machine is widely used in the best quality fish feedf making.





ADD: NO.2 Jianye Rd.,Tianmu Lake Industrial Zone,Liyang City,Jiangsu Province,China



Website:www.lywfsb.cn



Phone&Whatsapp:+86 13915861728



Wechat:H3333Q





Technical parameters:

No

Name

Model

SZLH25

SZLH32

SZLH35

SZLH40

SZLH42

SZLH508

1

Capacity (T/H)

0.5-1.5

2-5

3-8

5-10

6-12

8-20

2

Power (KW)

15

37

55

75/90

90/110

132/160

3

Screw feeder Power  (KW)

0.55

0.55

0.55

0.75

1.5

1.5

4

Conditioner Power(kw)

2.2

2.2

2.2

2.2

5.5

5.5/7.5

5

Pellet Size (mm)

2-12

2-12

2-12

2-12

2-12

2-12

6

Dimension (mm)

1668*640*1465

2006*800*1801

2165*895*1940

2302*970*2105

3150*1100*2543

3200*1300*2795

7

Weight(t)

1.5

2.1

2.5

2.8

3.1

3.5
