2018Top quality auto dosing and auto packing 5 ton per hour chicken feed pellet line/feed pellet plants with steel platform

FOB Reference Price:Get Latest Price
US $3,000-800,000 / Sets | 1 Set/Sets Personally discuss (Min. Order)
Model Number:
SZLH series
Key Company Capacity
Production Capacity >
  • Employees: 51 - 100 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: 3
Research & Design >
  • No.of R&D Engineer: 11 - 20 People
Trade Capacity >
  • Export Mode: Using an agent
  • Export Percentage: 71% - 80%
  • No. of Employees inTrade Department: 6-10 People
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
LYWF
Type:
Feed Pellet Machine
Voltage:
380V
Power(W):
300kw
Dimension(L*W*H):
10m*10m*14m
Weight:
400000 kg
Certification:
CE
Warranty:
1 year
Quality:
Top
Capacity:
5t/h
Application:
chicken,cattle
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
30 Set/Sets per Month personally discuss
Packaging & Delivery
Packaging Details
Wooden case or pallet for your choice
Port
Shanghai port
Lead Time :
20working days for single machine;50-60 days for the whole plant

livestock and poultry animal feed pellet mill,feed machinery :



Application :



1.1 SZLH series top-grade pellet mill belong to hard granular material die pellet mill, it is widely used in various feed mills.

1.2 This machine has characteristics such as compact structure, fine appearance, low power consumption, easy to use and reliable working etc.

1.3 This machine is equipped with dies of various apertures asφ 2 , φ 3 , φ 4 , φ 4. 5, φ 5 , φ 6 ,φ 8 and φ10 , and can customize the die of different apertures for users , users can select for use according to different needs.

1.4 This machine adopts frequency conversion (electromagnetic) transfer speed electric motor to feed material, and with lengthened type and strengthened type of big door-opening conditioner which equipped with axial steam spraying device, also there is strong magnetic security device, overload protective device and outside-machine material discharging mechanism.





Technical parameters:



No.

Item

Technical parameters and performance index

SZLH350

SZLH400

SZLH420

SZLH508

1

Capacity (t/h)

2-7

3-12

3-14

4-20

2

Power

(Kw)

Main machine

55

75/90

90/110

110/132/160

Screw feeder

0.75

1.5

1.5

1.5

Conditioner

3

5.5

5.5

11

3

Inner diameter of die (mm)

φ350mm

φ400mm

φ420mm

φ508mm

4

Effective width of die (mm)

120mm

120mm

120mm

150mm

5

Rotary

(rpm)

Die

328

248

248



Screw feeder

12-120

12-120

12-120

12-120

Conditioner

300

270

270

270

6

Pellet size (mm)

φ2—φ10mm

φ2—φ10mm

φ2—φ10mm

φ2—φ10mm







Detailed processes of  feed pellet mill line, poultry feed production line
1.     Raw materials receiving Process:
Raw materials can be corn, rice bran, soybean, grain, wheat, soybean meal / cake and etc. Precleaner can remove the impurities in raw materials.
2.      Grinding Process:
The feed grinder can grind the raw material ingredients to the required size. There are various hammer mills which can satisfy different requirements.
3.     Mixing Process:
Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality.
4.     Pelletizing Process:
Feed pellet mill is the core equipment of the whole production line. According to different raw material, material formula and working condition, we can offer you different pellet mills.
5.     Cooling Process:
The feed pellets pressed out by the feed pellet mill are hot and moist. They can't be crushed, screened or packed immediately. Counter-flow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following processes.
6.     Crushing Process:
Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.
7.     Screening, Grading and Packing Process:
The rotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.
Packing Process
The feed pellets should be packed for transporting, storing or selling.

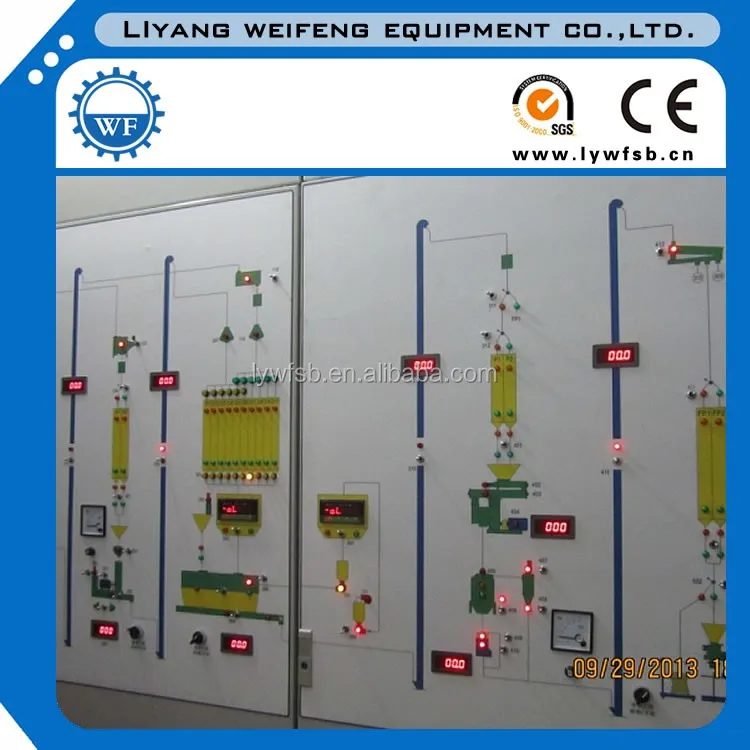

8.     Automatic PLC Control System(Customized):
With the automatic PLC control system, the production line is with high efficiency and convenient operation

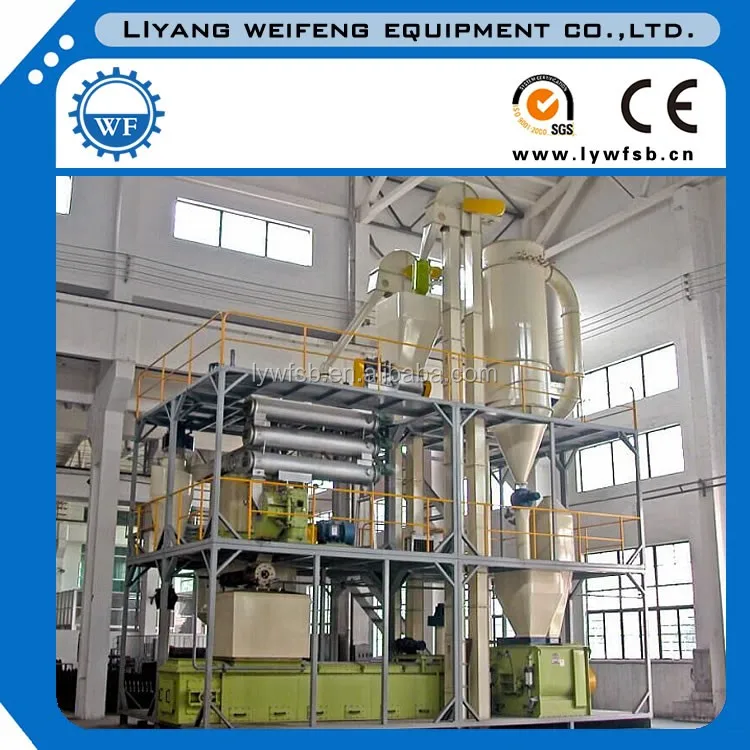

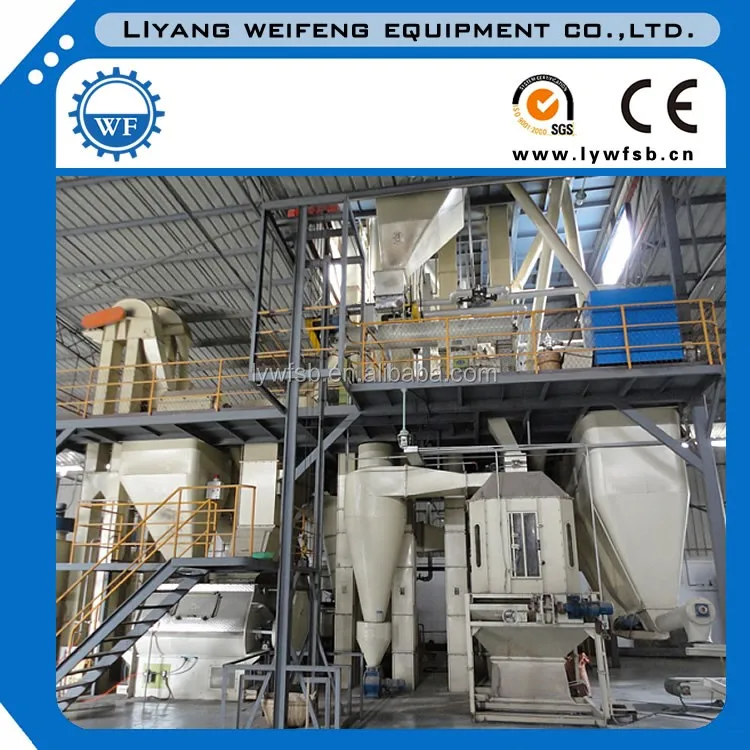

Photos:
